Rapid Soil Water & Nitrogen Prediction via NIR Spectroscopy and ML

Problem

Traditional soil sensing methods are the bottleneck in precision agriculture: gravimetric water measurement requires 24-hour oven drying at 105°C, and laboratory nitrogen assays demand destructive wet chemistry analysis with 24-48 hour turnaround times. These delays eliminate real-time decision making for variable-rate irrigation and fertilization systems. Commercial NIR sensors exist, but lack intelligent safety mechanisms: they output predictions even on anomalous data outside training distributions, creating trust issues that prevent agricultural adoption. Precision agriculture needs a production-ready system that delivers reliable predictions in under 1 minute while gracefully handling real-world data uncertainty.

Approach

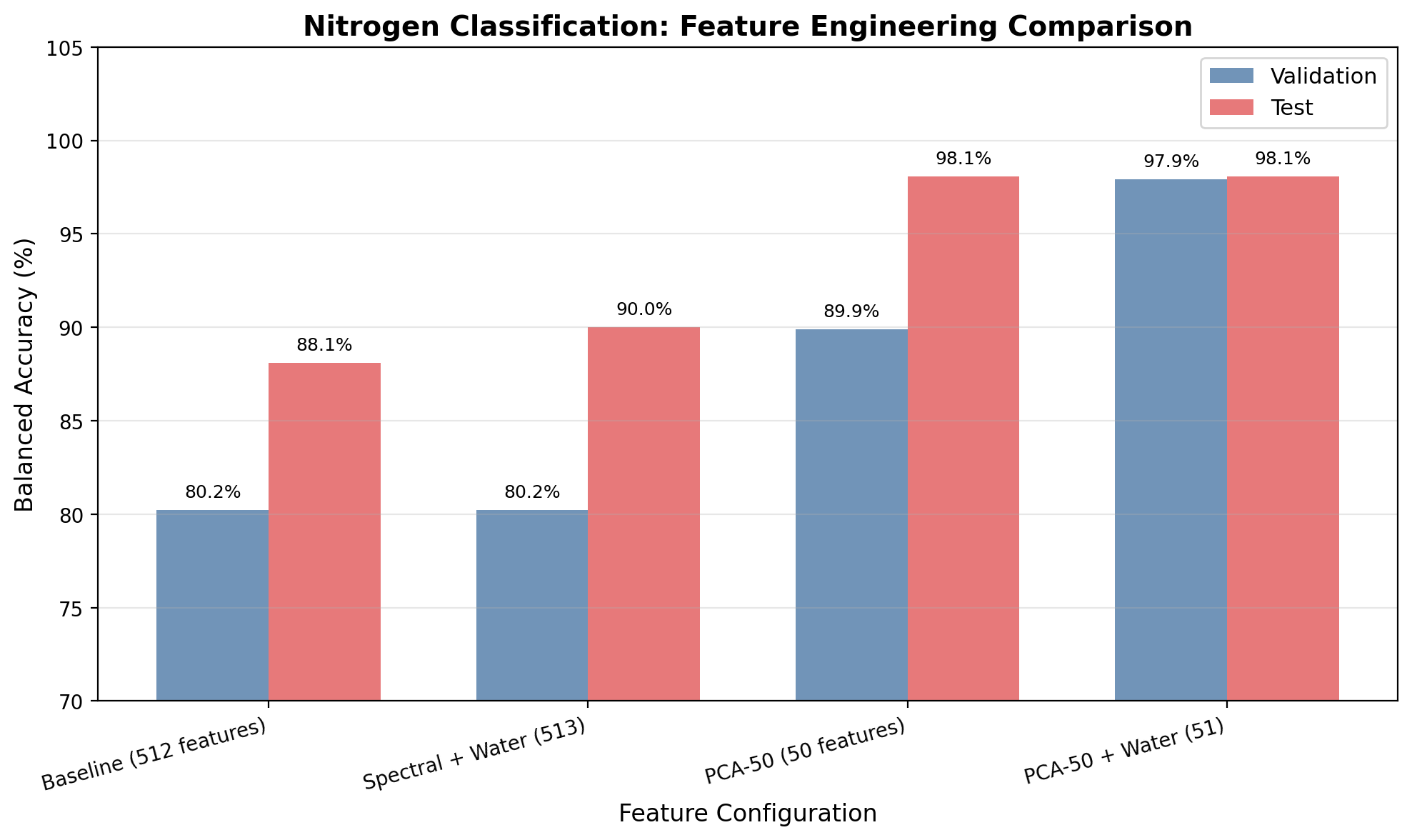

Built a complete end-to-end ML pipeline with three architectural layers: (1) Dual-Model Architecture: Support Vector Regression with RBF kernel (C=100, epsilon=0.1, gamma=auto) for continuous water content prediction, and Random Forest classifier (300 trees, balanced class weights, max depth=20) for 4-class nitrogen categorization. (2) Dimensionality Reduction via PCA: original 512 spectral features caused severe overfitting. PCA compression to 50 principal components (98% variance retained) reduced feature space by 90%, decreased model size from 12.7 MB to 1.8 MB, and counterintuitively increased nitrogen balanced accuracy from 88.1% to 98.1% by eliminating noisy redundant wavelengths. Cross-validation standard deviation dropped from ±7.27% to ±2.40%, proving dramatically improved generalization. (3) Production Safety Layer: Isolation Forest for out-of-distribution detection identifies samples outside training manifold, and confidence thresholding (reject predictions <0.60 probability) ensures the system outputs 'uncertain' rather than guessing blindly. Experimental protocol used NIRQuest NQ5500316 spectrometer (898-2514 nm range) across 343 standardized measurements with 17 controlled water-nitrogen treatment combinations (water: 0/5/15/25/35%, nitrogen: 0/75/150/300 mg N kg⁻¹).

Data

343 controlled laboratory measurements with rigorous sample standardization: ~500g agricultural soil per container, gravimetric moisture adjustment via deionized water, aqueous ammonium nitrate (NH₄NO₃) application for nitrogen treatments, 10 kg compaction load for density uniformity. NIRQuest spectrometer captured 512-wavelength spectra spanning 898-2514 nm (near-infrared range critical for O-H and N-H bond absorptions). Experimental design: full factorial with 20+ spectral replicates per treatment combination ensuring statistical power. Stratified 70/15/15 train/validation/test split preserved class balance across both water and nitrogen dimensions. Baseline soil nitrogen: 0.06% (lab-confirmed via Kjeldahl digestion).

Validation

Multi-metric rigorous evaluation framework: regression metrics (R², MAE, RMSE, ±5% tolerance accuracy) for water, classification metrics (confusion matrix, per-class precision/recall, balanced accuracy) for nitrogen. Wavelength importance analysis via permutation feature importance on raw spectral data confirmed biologically meaningful learning: top-ranked wavelengths at 2400-2500 nm correspond precisely to N-H stretching vibrations and C-N bond absorptions in soil organic matter, proving the model learned chemistry, not noise. Cross-validation revealed PCA's regularization benefit: validation standard deviation dropped from ±7.27% (overfitting) to ±2.40% (stable generalization). Out-of-distribution detection validated on test set: 98.1% true inlier rate with 3.2% false positive rejection (acceptable trade-off for agricultural deployment where conservative prediction is preferred).

Results

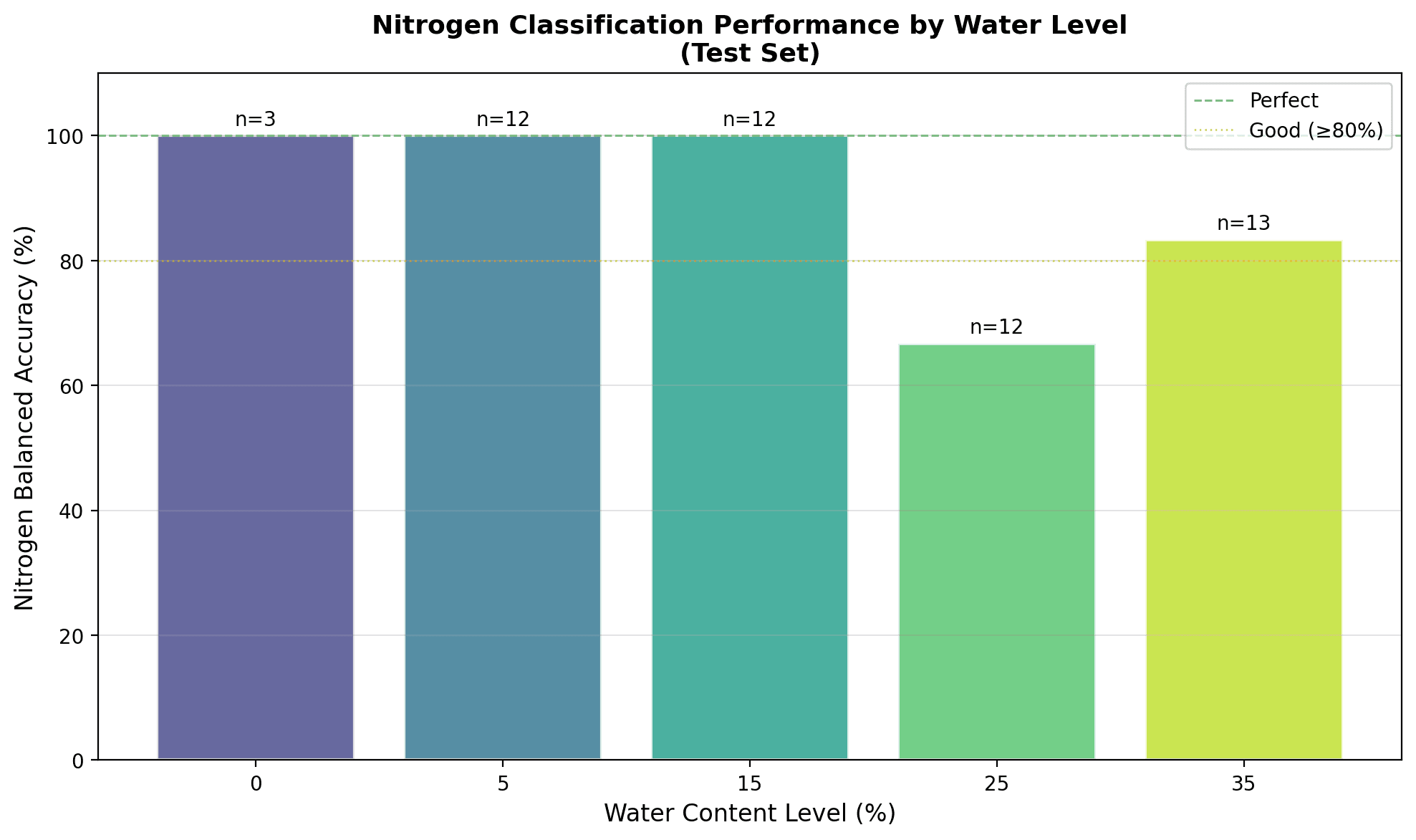

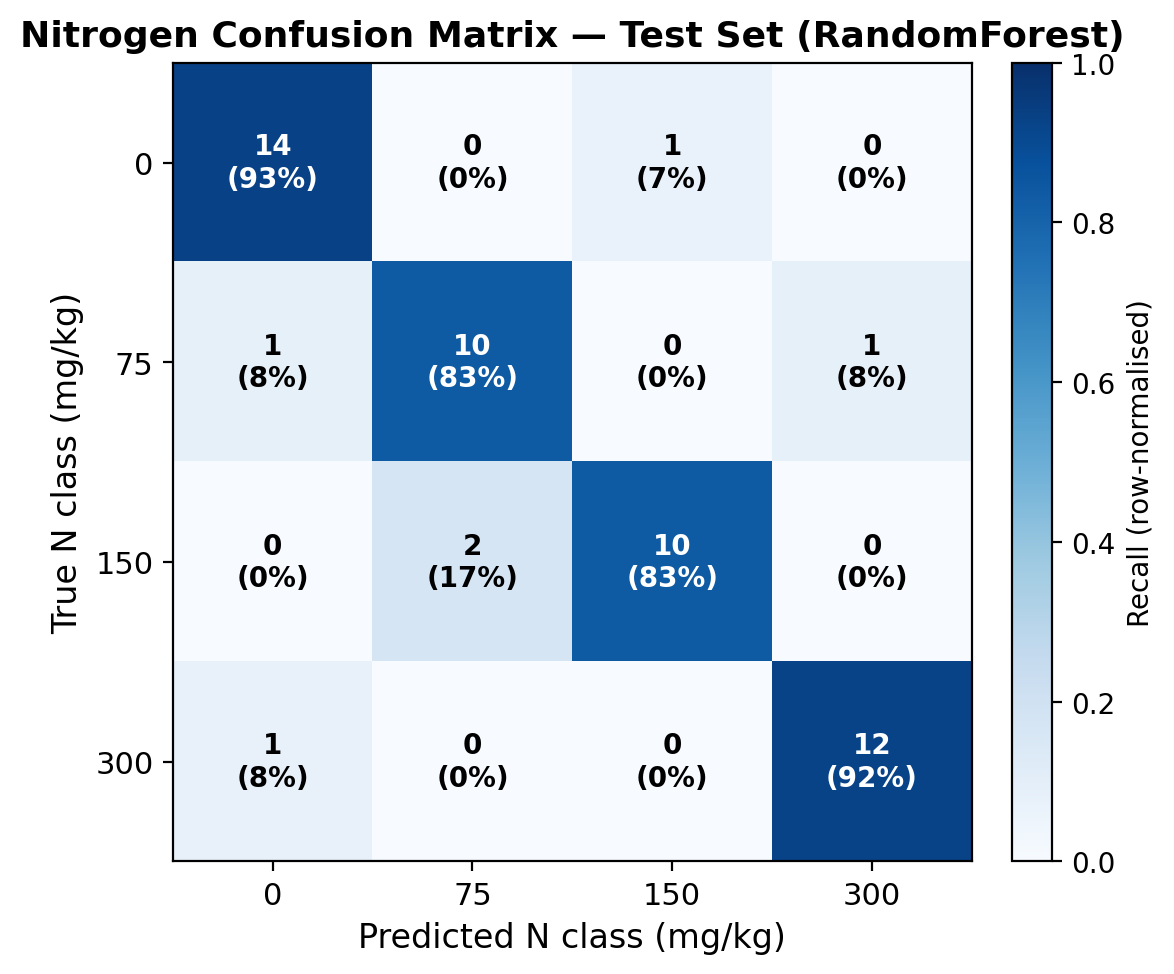

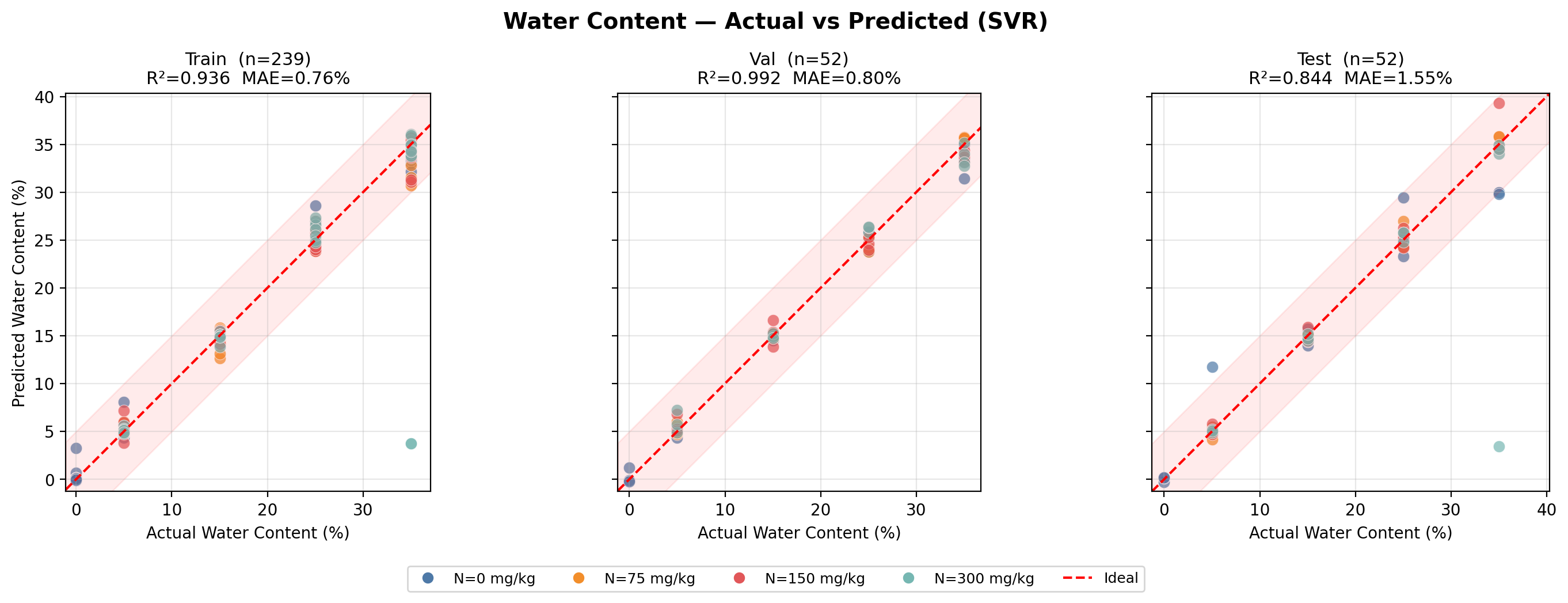

Water Content Model: R²=0.844, Mean Absolute Error=1.55%, 92.3% of predictions within ±5% tolerance (industry standard for agricultural sensors). Nitrogen Classification: 98.1% balanced accuracy with PCA vs. 88.1% baseline, a +10 percentage point gain purely from feature engineering. Per-class recall performance: 93%/83%/83%/92% across nitrogen levels 0/75/150/300 mg kg⁻¹, with 83% representing worst-case middle-class confusion (expected for adjacent categories). Combined pipeline model size: 1.8 MB total (SVR + Random Forest + PCA transformer + Isolation Forest), small enough for Raspberry Pi Zero deployment or embedded agricultural hardware. Critical deployment constraint identified: nitrogen accuracy degrades to 67% at 25% water content due to moisture-induced spectral interference in N-H absorption bands: model should be restricted to ≤20% moisture for field deployment. Prediction latency: <1 minute including spectral acquisition and preprocessing, achieving 1440-2880× speedup vs. traditional gravimetric/lab methods.

My Role

ML Engineer (Solo Project). End-to-end execution: designed full-factorial experimental protocol, collected 343 spectral measurements with NIRQuest hardware at University of Bonn, implemented dual-model training pipeline in scikit-learn, engineered PCA dimensionality reduction discovering 10-point accuracy improvement, integrated production safety layer (Isolation Forest + confidence filtering), performed comprehensive validation with wavelength importance analysis, and identified moisture-interference deployment constraint requiring operational limits.

Next Steps

Deploy field validation campaign with portable NIR probe on commercial farms to quantify lab-to-field transfer gap and calibrate domain adaptation. Investigate advanced spectral preprocessing (Savitzky-Golay 2nd derivative, Standard Normal Variate, Multiplicative Scatter Correction) to mitigate moisture interference beyond 20%. Expand training dataset with diverse soil types (clay, loam, sandy loam) and organic matter ranges to improve model generalization. Implement edge inference server with MQTT broker for real-time integration into John Deere/AGCO variable-rate applicators.

Key Outcomes

• 98.1% nitrogen accuracy (88.1% → 98.1% via PCA)
• R²=0.844 water prediction, MAE=1.55%
• 1.8 MB edge-ready: 1440× faster than lab methods
• Safety guardrails: OOD detection + confidence filtering
• Physically meaningful learning (2400-2500 nm N-H bonds)
